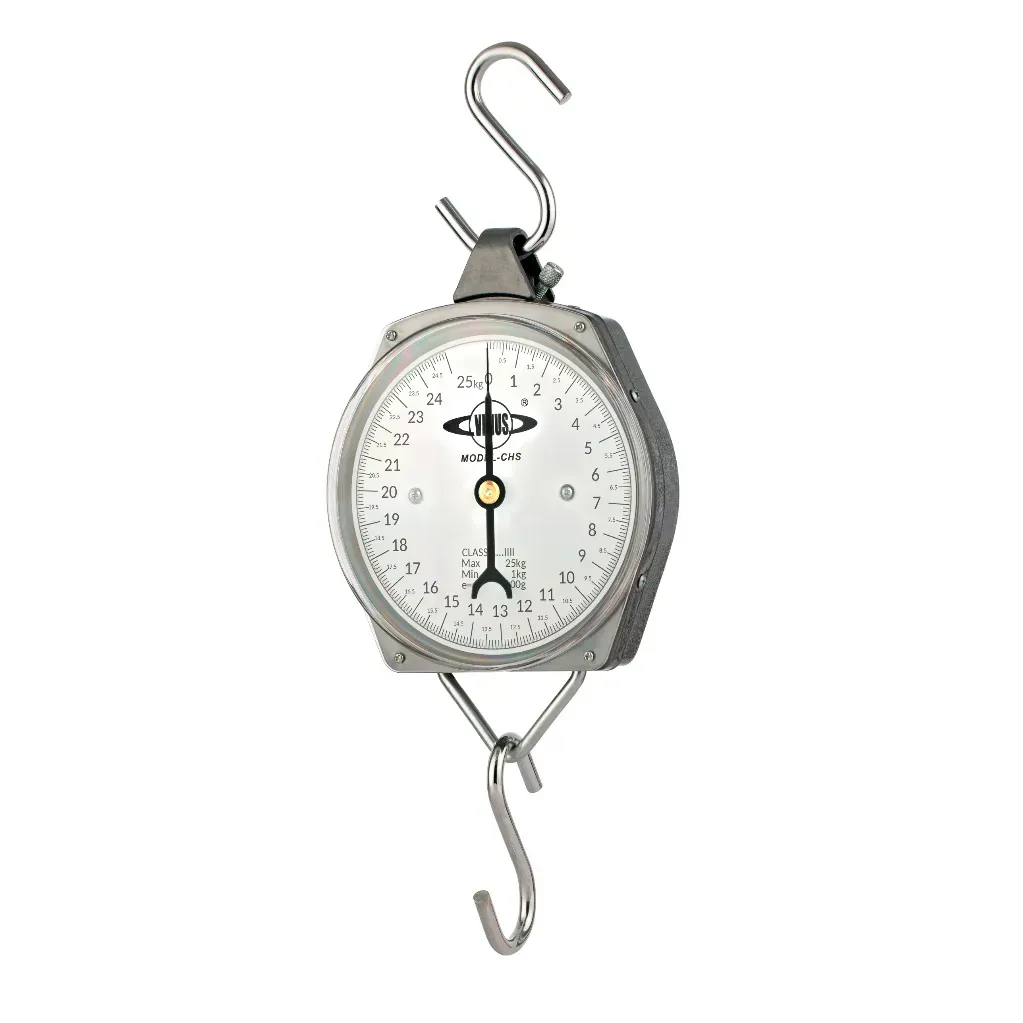

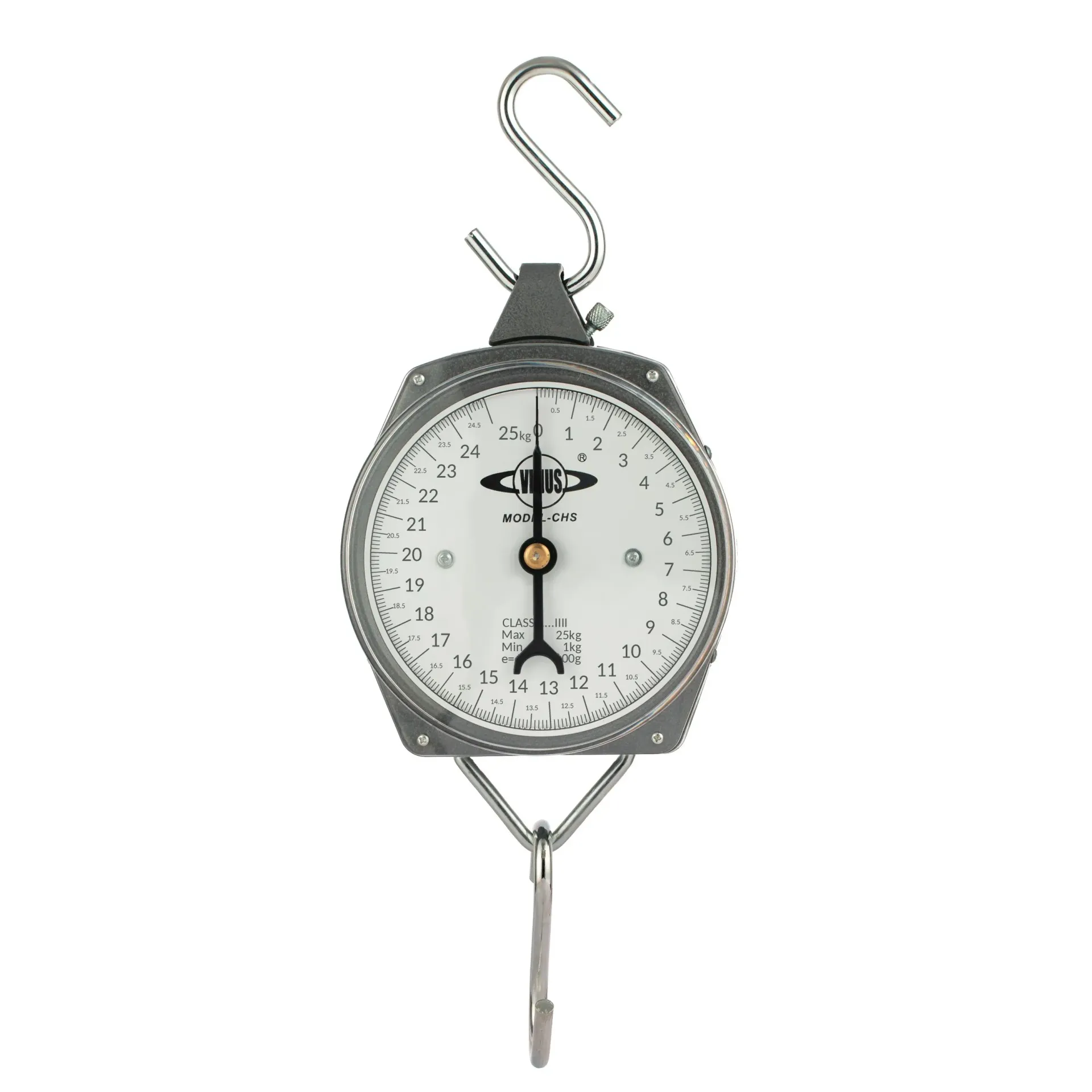

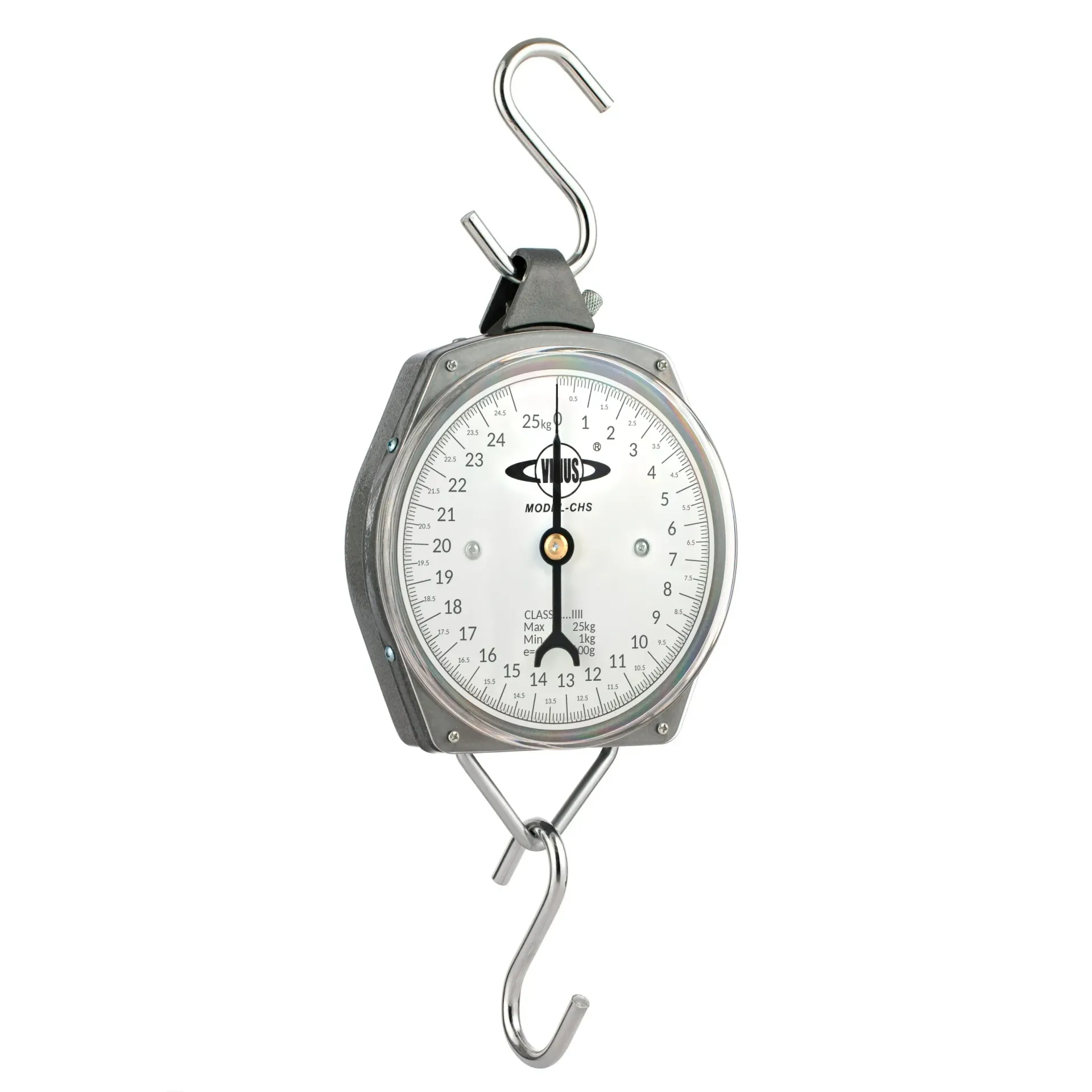

Venus CHS-25 Manual Circular Baby Hanging Scale with Sling – 25 kg

Key features of the CHS-25 Manual Circular Baby Hanging Scale

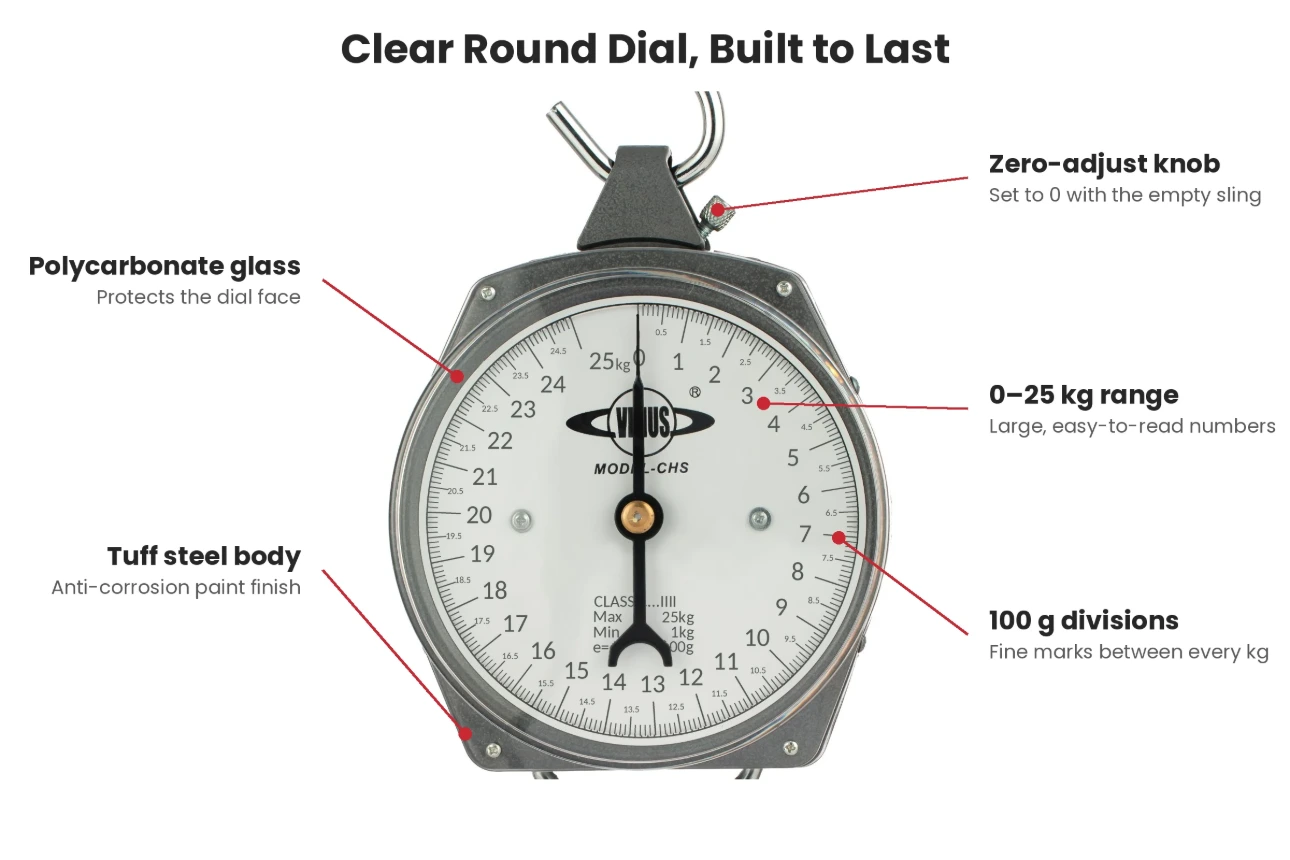

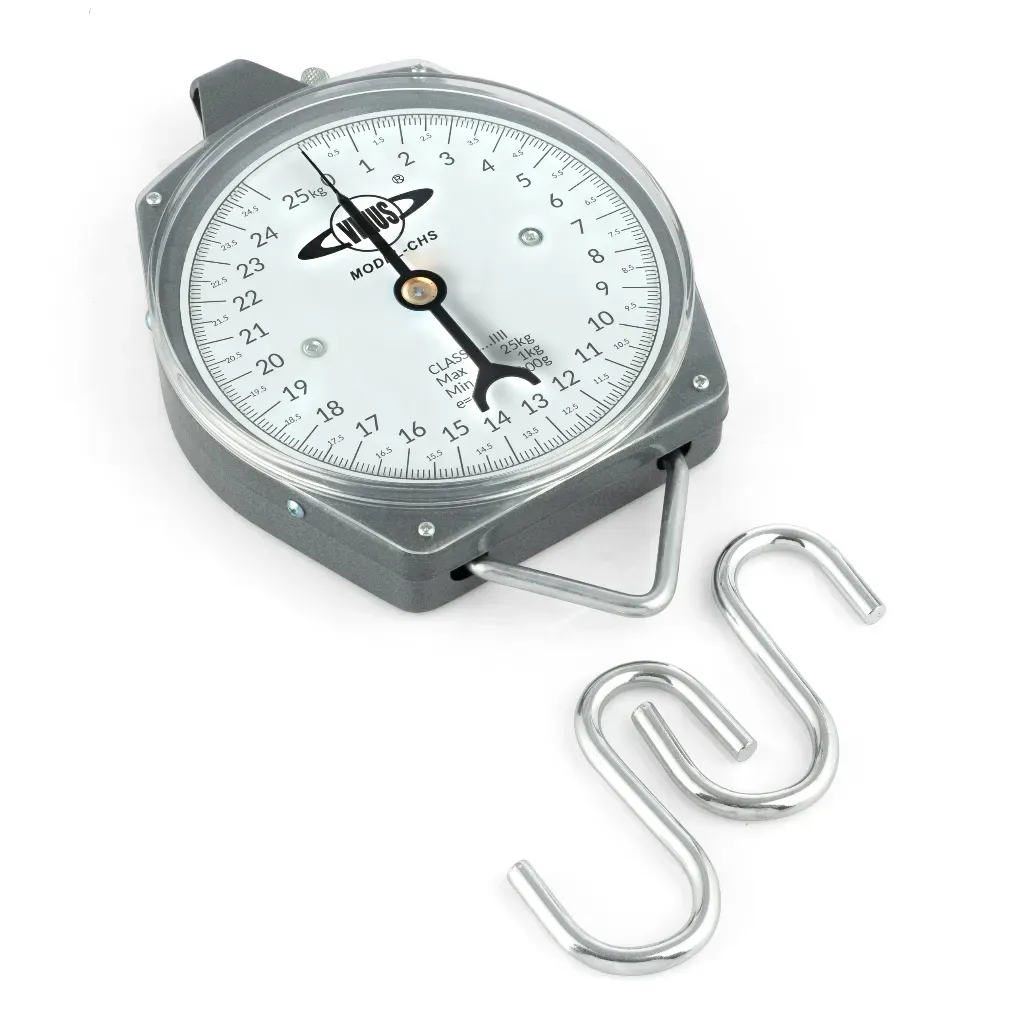

• Clear Round Dial – The circular dial has large g and kg markings that are easy to read at a glance, protected by a polycarbonate glass cover.
• Fully Manual, No Power Needed – No batteries or charging. It reads instantly anywhere, even where there is no electricity.
• Weighing Sling Included – The cloth trouser holds the baby securely while the scale hangs from the S-hook.
• 25 kg Capacity – Weighs newborns through toddlers and young children.
• Zero-Adjust Knob – Set the needle to zero with the empty sling attached, so only the baby’s weight is shown.
• Tough Steel Body – Anti-corrosion paint for long life in field conditions.
• Light and Portable – At just 1.1 kg, it fits easily in a field kit for home visits, Anganwadi centres and outreach camps.

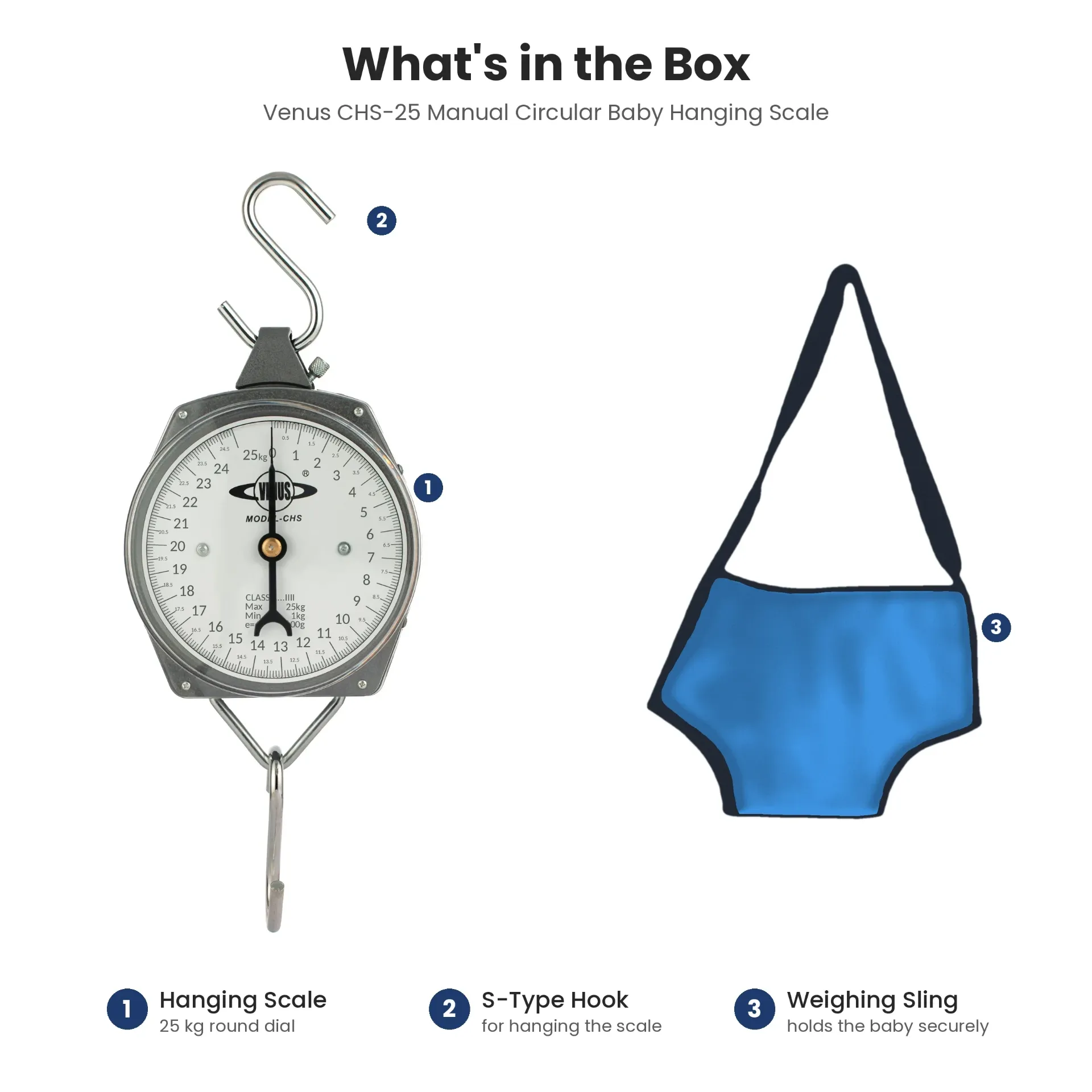

What's in the box

• 1 × CHS-25 Manual Circular Baby Hanging Scale
• 1 × S-Type Hook
• 1 × Weighing Sling (Trouser)

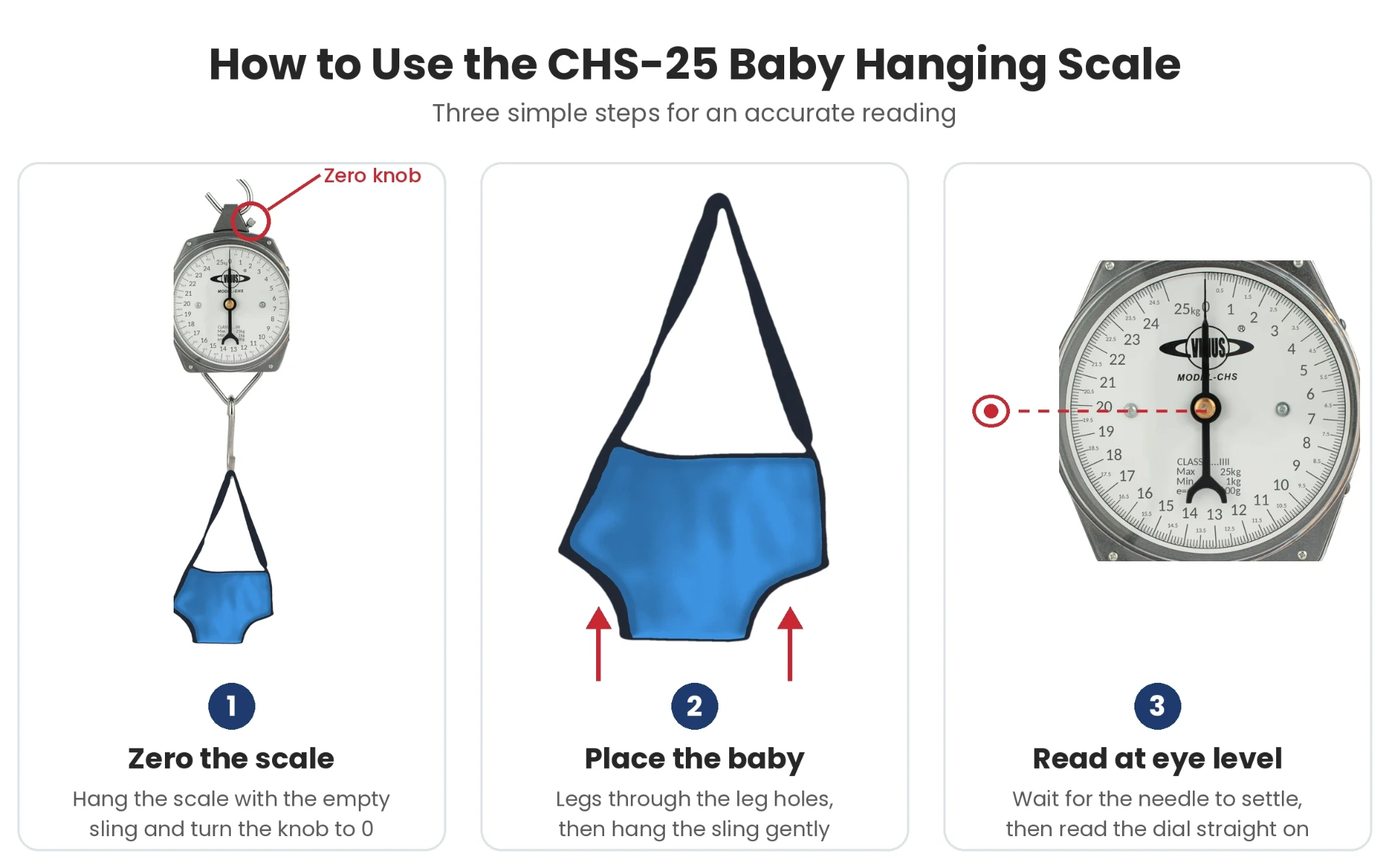

Usage

1. Hang the scale from a strong, fixed support such as a hook, beam or door frame, at a comfortable height.
2. Attach the empty sling to the S-hook at the bottom of the scale.
3. Turn the zero-adjust knob until the needle points exactly at zero.
4. Undress the baby down to a light vest or nappy and place them in the sling, with their legs through the leg holes.
5. Hang the sling on the hook and let go gently. Keep your hands close but not touching.
6. Read the dial at eye level once the needle stops moving.
7. Lift the baby out, then remove the sling.

Precautions and Care

1. Never leave the baby unattended in the sling; keep your hands close at all times.
2. Check the support first. Make sure the hook or beam can safely hold the scale and the baby.
3. Hang it low. Keep the sling just above a soft surface or bed in case of a slip.
4. Zero the needle every time with the empty sling attached before weighing.
5. Do not exceed 25 kg or drop weight suddenly onto the hook, as this strains the spring.
6. Read at eye level to avoid parallax error.
7. Wash the sling regularly with mild soap and let it dry completely before use.
8. Wipe the scale with a dry or slightly damp cloth; do not immerse it in water.
9. Store in a dry place to protect the spring and the dial.
