Calibrating a crane scale means hanging known test weights on its hook at about five loads, from zero up to capacity. Each reading is then compared with the known mass. A crane or hanging scale used to buy or sell goods in India must also be verified and stamped by Legal Metrology, then re-verified every 12 months. Omace's digital crane scales from 50 kg to 1 tonne read in 10 g to 100 g steps, so a check with a sealed packet only shows whether a reading is roughly right.
What calibrating a crane scale checks
A calibration check answers three questions. Does the scale read zero when the hook is empty? Does it read correctly at loads across its range? Does it show the same figure every time the same load is hung?
Inspectors check the same things. OIML R 76, the international recommendation for non-automatic weighing instruments, lists the verification tests as the error at about five loads, the accuracy of zero and tare, repeatability and off-centre loading.
Hanging scales skip one test that floor scales need. OIML R 76 treats crane and hanging instruments as freely suspended, so the tilting test does not apply; the load is expected to hang straight down.
Calibration and verification are separate jobs. Calibration finds the error and, if needed, corrects it. Verification is the legal check: the scale is tested for accuracy, stamped with the inspector's seal and given a verification certificate, as Rajasthan's Legal Metrology department describes it.
How far off a crane scale may read
The allowed error is counted in verification scale intervals, written as e on the scale's data plate. Under OIML R 76, a class III scale may be off by half an interval up to 500e, one interval up to 2,000e and one and a half intervals above that, when it is verified. A scale in service is allowed twice those limits.
Omace's own crane scales show how this works. The Omace OM-CS crane scale series, for capacities up to 30 tonnes, is a Legal Metrology approved model, approved in accuracy class III. Its approved 5 tonne model has a verification interval e of 1 kg and a minimum capacity (Min) of 20 kg. For a scale like that, the limits work out as follows.
| Load on the hook | Allowed error at verification | Allowed error in service |
|---|---|---|
| 20 kg (Min) to 500 kg | ±0.5 kg | ±1 kg |
| Above 500 kg to 2,000 kg | ±1 kg | ±2 kg |
| Above 2,000 kg to 5,000 kg | ±1.5 kg | ±3 kg |
The display step is not the same as e. The Omace OM-CS-M-1000 1 ton crane scale shows weight in 100 g steps, but on any scale the legal limits come from e, which can be larger than the display step. OIML R 76 asks for e to be marked on the instrument, and for the display step d to be marked as well when it is smaller than e.
The Venus CHS mechanical hanging scale is a Legal Metrology approved model in accuracy class IIII, the ordinary class. Its approved 100 kg model has e = 500 g and Min 5 kg, and its 200 kg model is graduated every 1 kg. On a dial without extra indicators, R 76 sets e equal to the graduation. A class IIII dial marked every 1 kg may then be off by ±0.5 kg up to 50 kg and ±1 kg up to 200 kg at verification.
Test weights for a crane scale
Test weights must be far more accurate than the scale. OIML R 76 says their error may not exceed one third of the scale's allowed error at that load. Weights made to OIML R 111 class M1 meet this for most crane scales: a 20 kg M1 weight is allowed ±1 g, and a 500 kg M1 weight ±25 g.
Heavy crane scales are hard to test with weights alone, so R 76 allows a substitute load at the place of use. Standard weights must make up at least half of the capacity, and the rest can be any steady load, such as steel or bagged material. If the scale repeats within 0.3e, the weights can drop to one third of capacity, and to one fifth if it repeats within 0.2e.
For a quick check at work, Omace's product pages suggest hanging a sealed packet you know, such as a 5 kg atta pack. That shows a gross fault. A packet is not a test weight, so use it to spot a big error, never to adjust the scale.
How to calibrate a crane scale, step by step

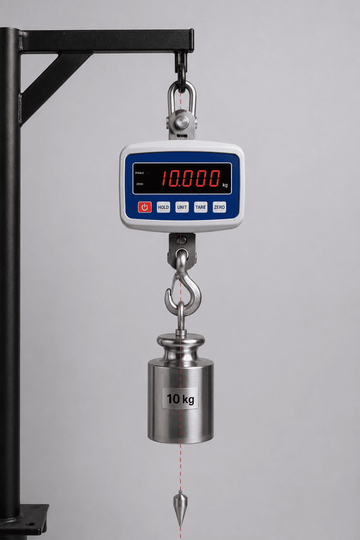

- Hang it from a fixed point. Use a hook, beam or chain pulley rated above the heaviest load, and let the scale hang straight.
- Switch on and zero. With nothing on the bottom hook, wait for 0. If the weights hang in a sling or chain, hang it empty and press Tare.
- Load in five steps. Add weights at about 20, 40, 60, 80 and 100 per cent of capacity. Lift each load slowly and never drop it onto the hook.
- Read only when still. Wait until the load stops swinging and the display settles, then write the reading down.
- Unload and check zero. Remove the weights in the same steps and confirm the display returns to 0.
- Repeat one load three times. The three readings should agree within the allowed error for that load.
- Compare and record. If every reading is inside the limits, note the date and results. If not, the scale needs adjustment.
Adjustment is where the law steps in. OIML R 76 requires the calibration adjustment of class II, III and IIII scales to be sealed, and on a stamped crane scale the Legal Metrology seal covers it. Only a registered repairer may open it: the Rajasthan department notes that Section 23 of the Legal Metrology Act requires a licence (called a registration certificate under the 2026 amendments) to repair weights and measures. A repaired scale must be re-verified and stamped before it is used again, according to the Assam Controller of Legal Metrology.
A dial scale is simpler to check. Turn the knob on top until the needle sits on 0, hang a known weight gently, and read the dial straight on at eye level, because reading it from the side shifts the figure. These steps follow the Venus CHS instructions.
Swinging loads, location and lifting safety
A hanging scale measures the pull along its own axis. A load that swings, bounces or is dragged sideways adds force that the scale cannot separate from the weight, so the reading moves until the load hangs still.
Lifting rules say the same. The US Occupational Safety and Health Administration's overhead crane rule requires the hook to be brought over the load in a way that prevents swinging.
Two habits fix most errors: lift slowly, and wait. The Omace OM-CS-C digital crane scale has green LED displays on the front and back, so the person lifting and the buyer can both read the settled figure.
Location matters too. OIML R 76 says that when a scale is verified in one place and used in another, the difference in local gravity must be allowed for. A crane scale is therefore best calibrated where it will work. Unless its markings state other limits, R 76 also expects a scale to hold its accuracy between −10 °C and +40 °C.
Lifting safety checks that go with calibration
A crane scale is part of the lifting chain, so its hooks and shackles carry the full load. Never hang more than the rated capacity, and hang the scale from a hook or beam that can hold more than your heaviest load.
The OSHA overhead crane rule gives a clear checklist for hooks. It calls for a daily visual check and a monthly inspection with a written record. Hooks with cracks, a throat opened more than 15 per cent or a twist over 10° are to be taken out of use. The same rule tells operators to avoid carrying loads over people.
Legal Metrology rules for crane scales in India
- Model approval. Makers and importers must get each model approved by the central government before making or importing it, under the Legal Metrology (Approval of Models) Rules described by the Press Information Bureau.
- Verification before use. A weight or measure may not be used in a transaction unless a Legal Metrology officer has verified and stamped it.
- Every 12 months. Weighing instruments are re-verified every 12 months; weights and beam scales every 24 months.
- After repair or a move. A repaired scale, or one dismantled and reinstalled at another place, must be re-verified before use.
- Certificate on display. The verification certificate must hang in a conspicuous place where the scale is used.
An owner can take a scale to the district Legal Metrology inspector directly. In Rajasthan, going through a licensed dealer or repairer for verification is allowed but not mandatory, and applications are made online.
Digital or mechanical crane scale: what to expect
A digital crane scale uses a load cell and shows fine steps; a mechanical scale uses a spring and dial and needs no power. The table compares Omace hanging and crane scales sold today, with prices including GST from October 2026.
| Model | Capacity | Reads in | Display and power | Price |
|---|---|---|---|---|
| Venus CHS mechanical hanging scale | 25, 50, 100 or 200 kg | 100 g to 1 kg | Analog dial, no battery | ₹899–₹999 |
| Omace OM-CS-M-50 digital hanging scale | 50 kg | 10 g | Green LED, 6 V rechargeable | ₹3,299 |
| Omace OM-CS-C digital crane scale | 200 or 300 kg | 50 g | Two green LEDs, about 24 hours per charge | ₹2,799–₹3,299 |
| Omace OM-CS-M-500 crane scale | 500 kg | 50 g | Green LED, rechargeable | ₹9,599 |
| Omace OM-CS-M-1000 crane scale | 1,000 kg | 100 g | Digital, shackle and safety hook | ₹12,379 |
A dial scale keeps working in the field, in a power cut and far from a charger, with no electronics to fail after dust or a splash. The digital models read finer, and the OM-CS-C and OM-CS-M-50 add tare and running totals. For loads from 1 to 50 tonnes, Omace also sells the OCS crane scale with a die-cast body and remote control. OCS crane scales from the 1 tonne OM-CS-C-1000 up are rated IP65 or better against dust and water. All of them, dial or digital, are checked the same way: zero, five loads, repeat.
Buying a crane scale from Omace
Omace Brands Private Limited has made and supplied weighing scales in India since 1994, from Bagru, Jaipur. Omace checks every scale before dispatch, and its OM-CS crane scales leave the Bagru factory verified and stamped by Legal Metrology. RS-232 or USB data output is available on request on 8690277199. Maintenance is supported on request, and the buyer pays shipping, labour and other costs. There is no fixed AMC package; for small issues, Omace guides the buyer by phone. Hanging and crane scales bought from the Omace store carry a 2-year warranty on manufacturing defects; batteries and physical damage are not covered. Omace delivers PAN India. More about Omace. Omace scales are made in India. As a manufacturer, Omace Brands Private Limited holds ISO 9001:2015, ISO 13485:2016 and EU MDR quality certificates, and CE and US FDA compliance certificates; each is listed with its certificate number on the Omace certificates page.
Keep a crane scale accurate
Check zero before each day's work, run the five-load check after a knock or a move, and book Legal Metrology re-verification before the 12-month date if the scale is used for trade. The same steps for smaller scales are in the guide on how to calibrate a digital weighing scale, and the full legal picture is in what legal for trade means in India. For lighter loads, see all hanging weighing scales.
